Thickness Measurement
What :
Thickness measuring is important in many industries
Benefits :
- In process monitoring in real time
- Part verification faster than with a CMM
Who :
Process Measurement
The Thickness of material passing under 1,3 or n laser head pair's
or similar sensors is continuously measured. The user can view the results numerically of graphically. Pass Fail criteria can be set up to stop the line.
Component Measurement
The component is set an a jig, and touch probes or lasers measure
the Thickness / Contour
Hardware :

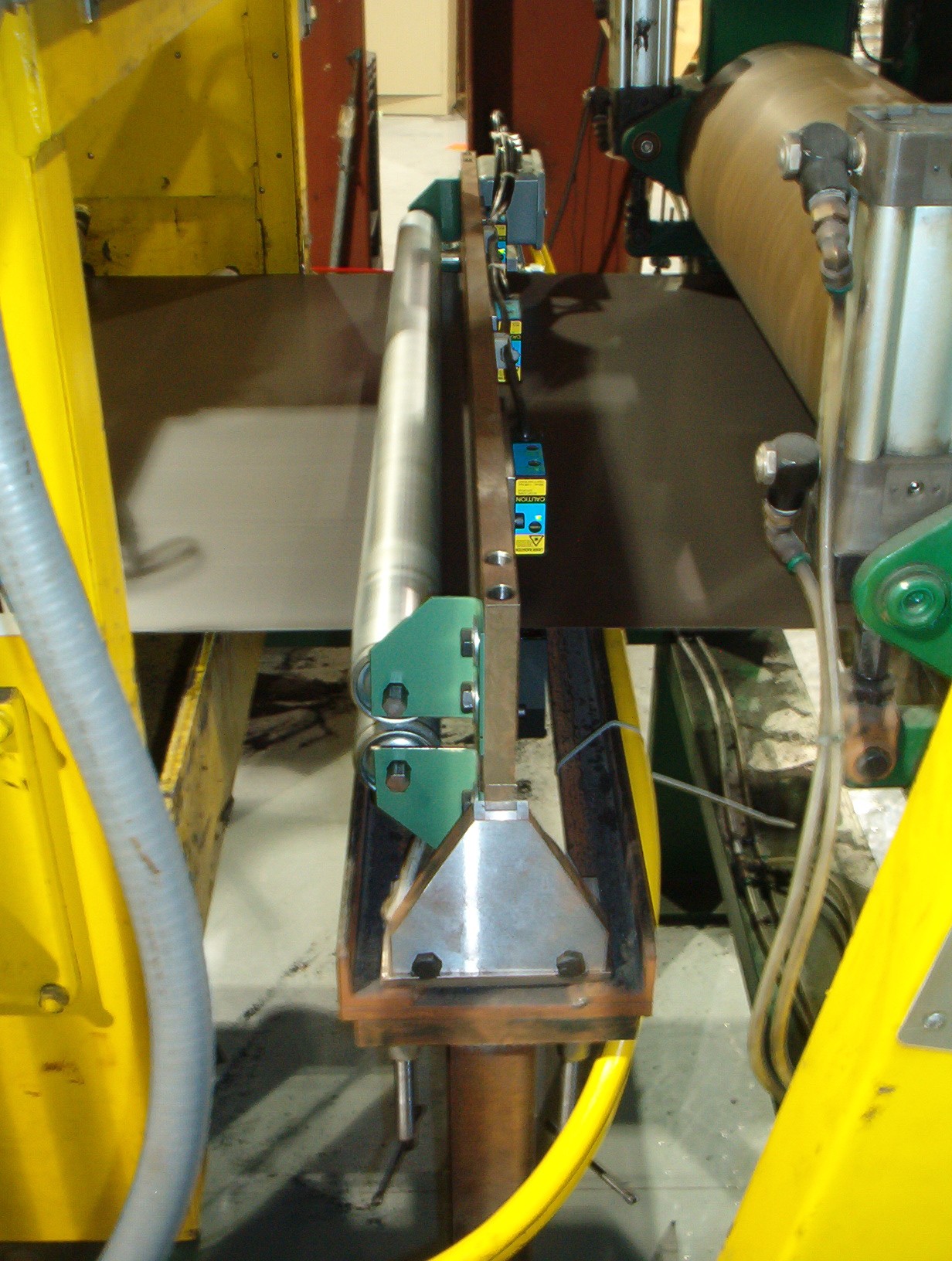

- Analogue inputs card or lasers or touch probes (Diverse hardware supported image show Acuity AR200/AR1000 lasers)
- Digital IO card (diverse cards supported)
Automation Manager Features :

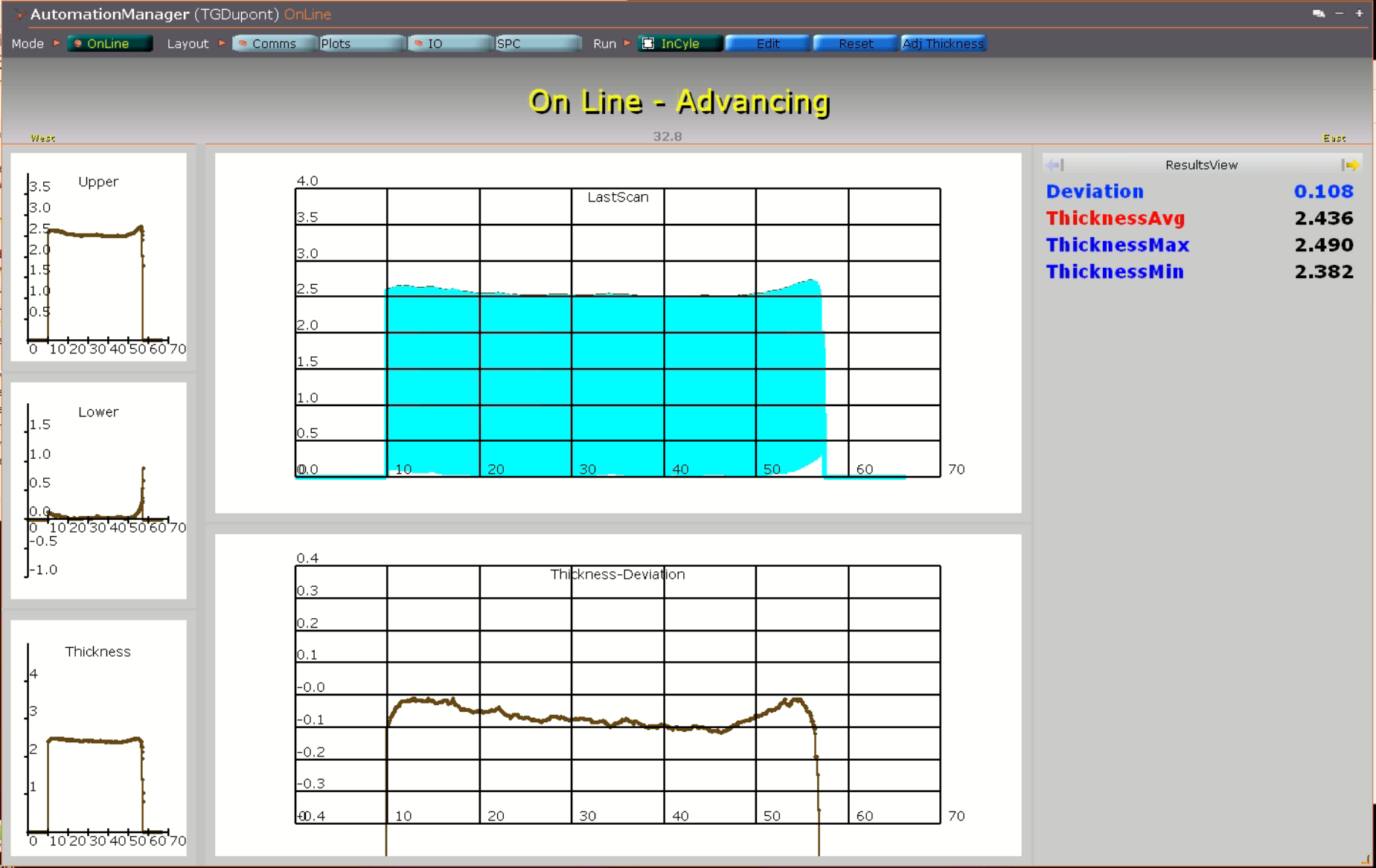

- Show charts of thickness
- Part tolerance programs are operator selectable
- Tolerance files easily defined by maintenance personal
- Easy Gain and Offset calibration
- Built in SPC, GRR capability
- Reporting
